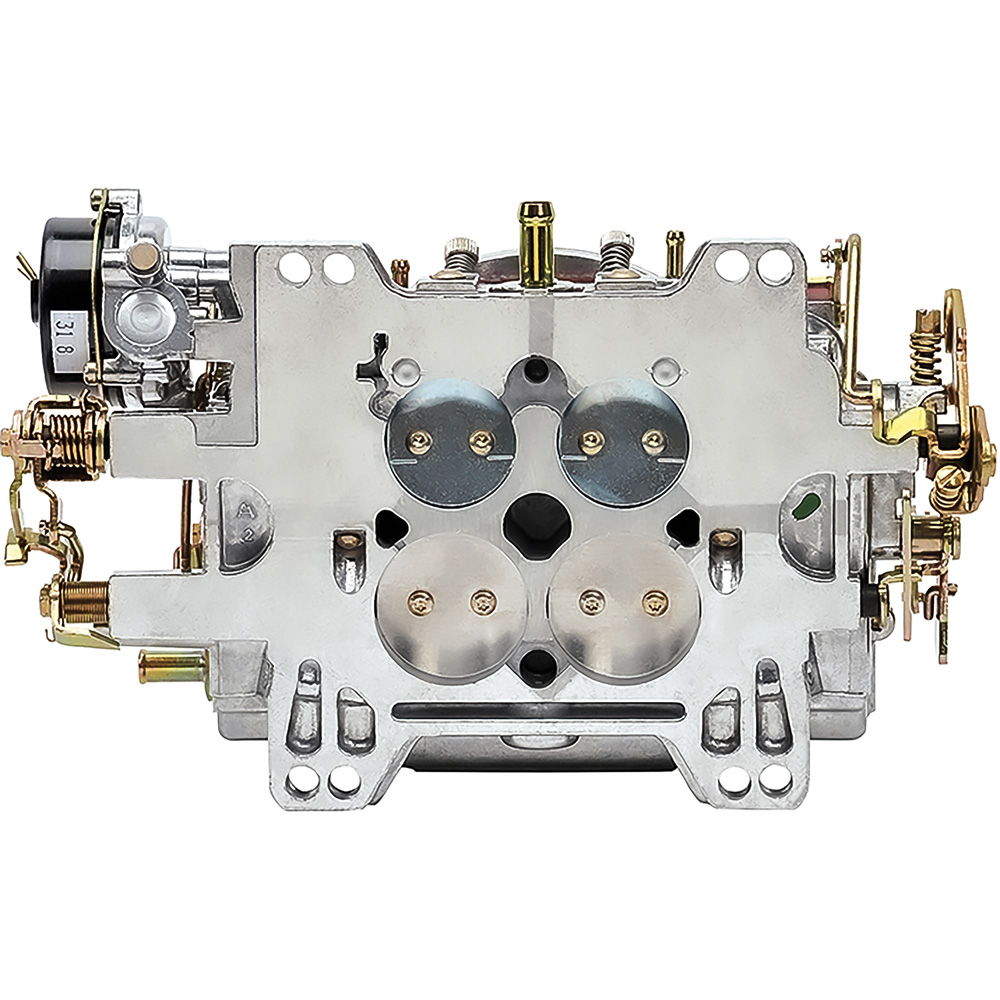

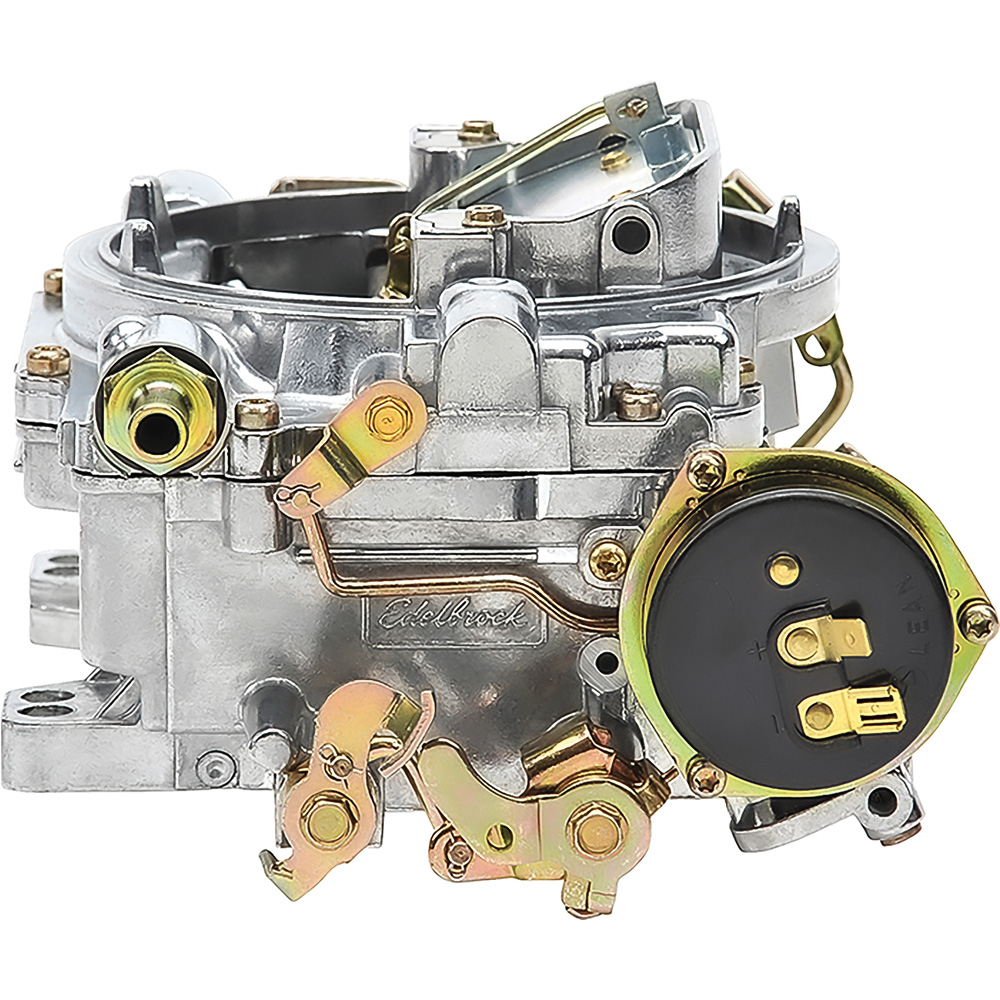

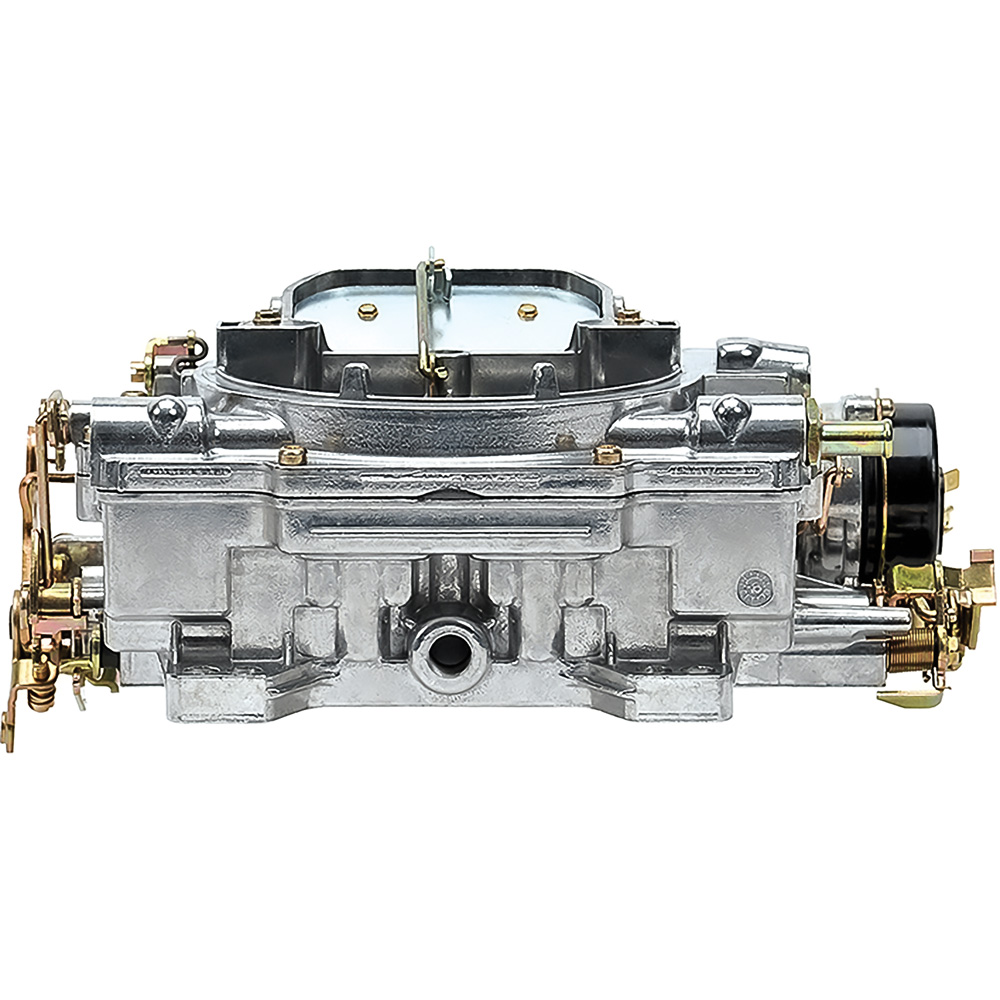

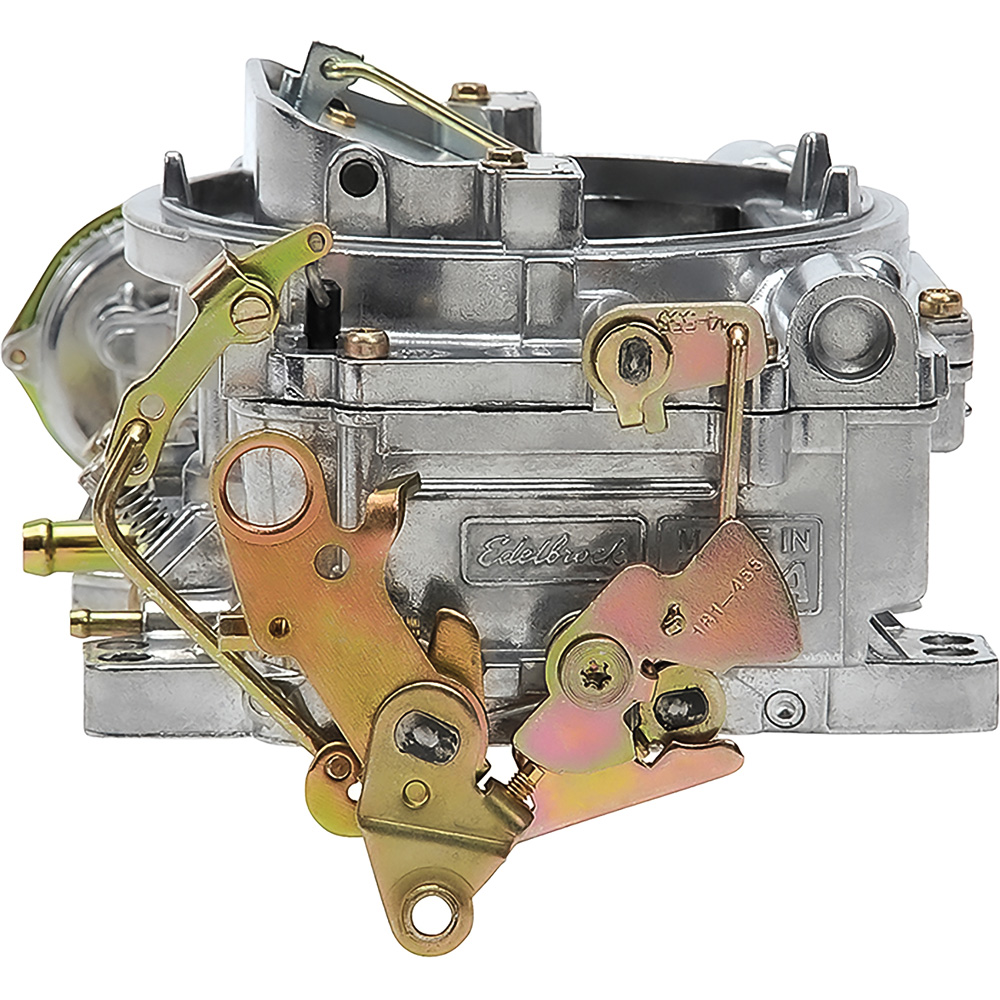

Edelbrock; Square Bore; 500 CFM; Non EGR Performer Series Carburetor; With Electric Choke

Performer Series carburetors complete the Edelbrock Power Package System for a smooth running and great performing "no guesswork" parts combination.

Edelbrock carbs put the fun back into your driving because of their unique ability to "hold a tune". This means that compared to other carburetors, performance remains consistent and calibration is held perfectly.

By design, Performer Series square-bore carbs are refined to provide the widest possible torque range when matched with Edel brock Performer, Performer RPM, RPM Air-Gap or Torker II manifold and camshaft combinations. However, these carburetors are not limited to these applications, they also match well with most stock and other manifolds of similar design.

PerformerS eries square-bore carbs are all aluminum, ball burnished and lightweight. There are no power valves to blow out or plastic parts to break. The two piece construction resists warping and the metering rods can be changed in seconds without removing the carb uretor.

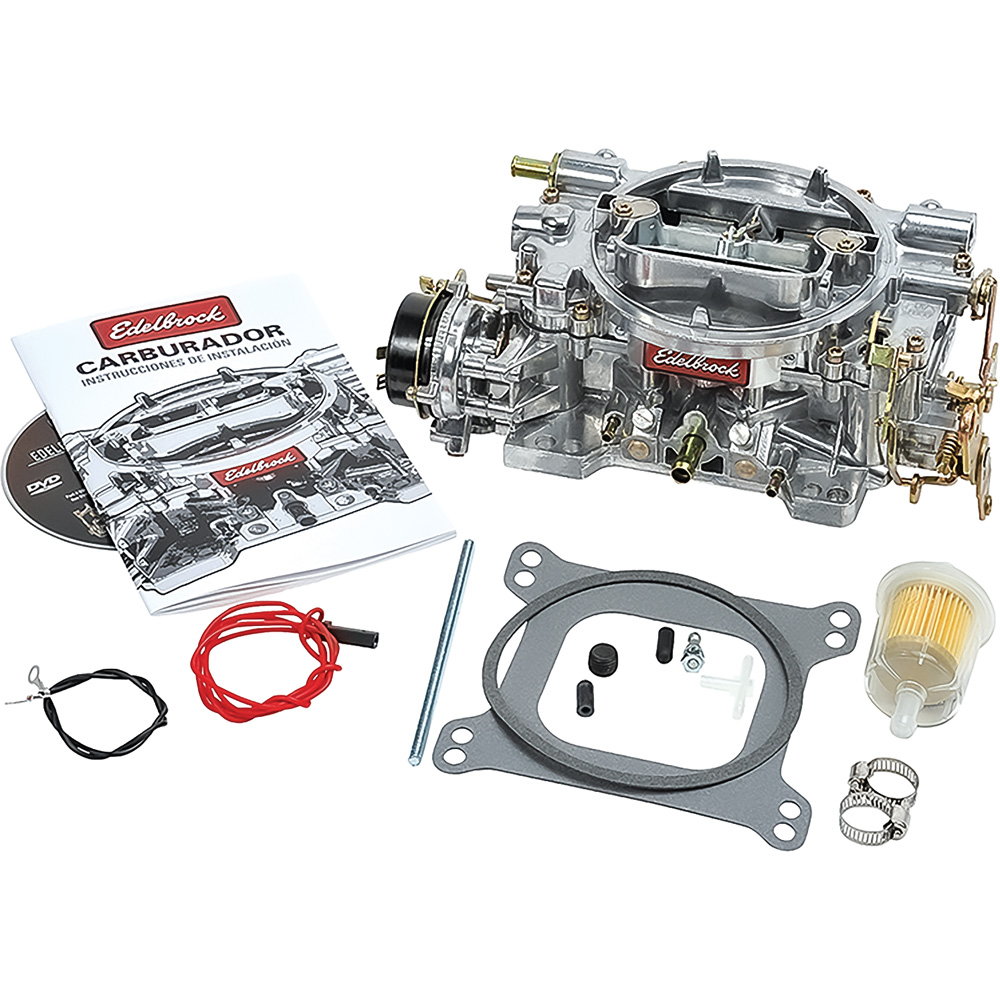

Edelbrock carbs bolt-on and run right out of the box! Simply dependable, proven performance for almost any carbureted vehicle plus all Edelbrock carbs come with an installation kit and owners manual.

Recommended for small cubic -inch Performer and dual quad applications. Includes both timed and full vacuum ports for ignition advance.

• Metering Jets - Primary.086, Secondary.095
• Metering Rods -..065 x.052
• Step-Up Spri ng - Orange (5" Hg)
• Venturi diameters - 1-3-16" Primary, 1-9/16" Secondary
• Throttle blade diameters - Primary 1-7/16", Secondary 1-11/16"

Important: Not legal for sale or use on pollution controlled motor vehicles. See Emissions Notes.

This part is legal for use on Uncontrolled (Non-Emissions Controlled) Vehicles or Racing Vehicles. The vehicles below are cons idered Uncontrolled (Non-Emissions Controlled) Vehicles:

• 1965 and older U.S. manufactured California Certified vehicles.
• 1967 and older U.S. manufactured Federally Certified vehicles.
• Racing Vehicles are vehicles that are used exclusively for racing or other forms of competition that are not registered and that may never be used on the street.
