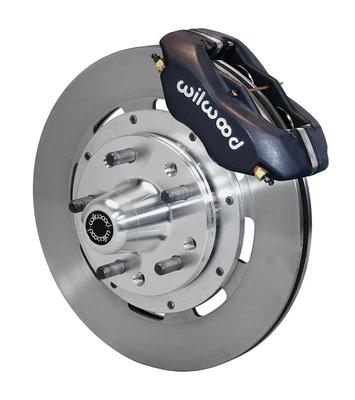

1965-69 Mustang Dynalite Pro Front Disc Brake Set with Black Calipers and 12.19" Plain Rotors

Dynalite Pro Series Front Hub Sets are engineered for competition or sports driving applications and offer big stopping power in severe heat conditions with up to 35 pounds of weight savings off the front end.

Ford Applications:

• 1964-1970 Mustang (through 8/24/69)
• 1963-1970 Falcon (through 8/24/69)
• 1970 Maverick (through 8/24/69)
• 1968-1969 Torino
• 1963-1969 Ranchero
• 1964-1969 Set Includes:
  • Forged billet aluminum hubs with bearing races installed and drilled for 5 x 4.50" and 5 x 4.75" lug patterns with a +.09" hub offset
  • Bearings, grease seals and screw-on billet aluminum dust caps
  • 1/2"-20 wheel studs
  • Dynalite forged billet 4 piston black anodize calipers
  • BP-10 SmartPad brake pads
  • Aluminum mount brackets with steel threaded bolt hole inserts
  • Ultralite HP 12.19" vented plain iron rotors
  • Grade 8 strength or higher nuts, bolts, washers and alignment shims

  Photo for illustration purposes only, set contents may vary. Additional parts may be needed for installation.

  Important:
  Set can be used with either manual or power assisted master cylinder.
  For OEM drum or disc brake spindles.
  Flex hoses are not included. OEM brake lines will not adapt to Wilwood calipers. We recommend purchasing part # 22012168 1965-69 Wilwood Stainless Steel Braided Flexlines with this kit.
  15" disc brake offset wheels are required.
  May require modification to caliper mounting ears and backing plate.
  Not for use with aftermarket or drop spindles.

  Note:

  Shipped overweight.
