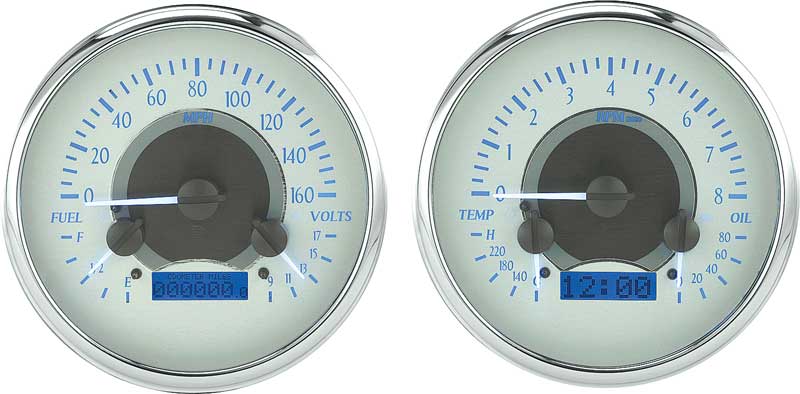

1947-53 GM Pickup VHX Series Gauge Set with Silver Alloy Face and Blue Backlighting

Add a modern appearance to your truck with these VHX gauge clusters from Dakota Digital. Six gauges provide traditional readouts while digital LCD message centers can select between clock, odometer, hour meter, 0-60 timer, 1/4 mile timer, and shift indicator. Behind the scenes, micro-controlled precision stepper motors, and solid state sensors bring your classic instrument cluster into the modern age.

Made in USA

Designed to fit directly into the stock gauge openings in 1947-53 Chevrolet and GMC trucks and feature machined chrome bezels.

Speedometer: 0 -160 MPH
Tachometer: 0- 8,000 RPM
Oil Pressure: 0- 80 PSI
Water temperature: 100- 260° F
Fuel level: E, 1/4, 1/2, 3/4, F
Voltmeter: 9- 17 VDC
Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face

Turn signals (Left / Right)
High beam
Check engine
Parking brake
Gear position: Requires sending unit / module DD1000 (sold separately).

Standard Displays:
Odometer (one time user settable, million mile)
Dual (A/B) trip meter (0- 9,999.9)
Clock (12 hour)
Performance Meters:
0- 60 MPH timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Lighting:
Auto-contrasting LCD display for optimal view in the brightest of sunlight. LED backlit at night to match / complete the look at night

Water temperature: 1/8" NPT, ground isolated sensor with a 10 ft harness
Oil pressure: 1/8" NPT solid state sensor with a 10 ft harness
Cable driven speed sensor/ generator. Replaces GM style speedometer cables with a 10 ft harness
Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Note: Fits OE or reproduction instrument housing / dash bezel (not included).
