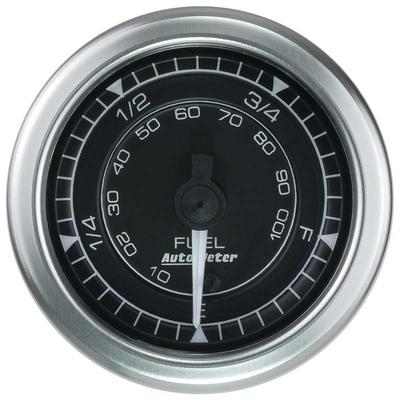

AutoMeter Chrono Series 2-1/16" Programmable 0-280 OHM Fuel Level Gauge

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered.

The AutoMeter Chrono Series include standard gauges with unique three dimensional beveled dial and over 320° of pointer movement providing unparalleled dial resolution. The Chrono series, styled after modern timepieces, feature white LED through-dial lighting coupled with a bright anodized bezel and flush mount window that will set the dash off in any vehicle.

Made in USA

• Unique three dimensional dial design gives added depth and style to your custom dash
• Over 320° of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
• Features metric and imperial scalings for easily relatable readings on applications around the world without the need for mental unit conversions

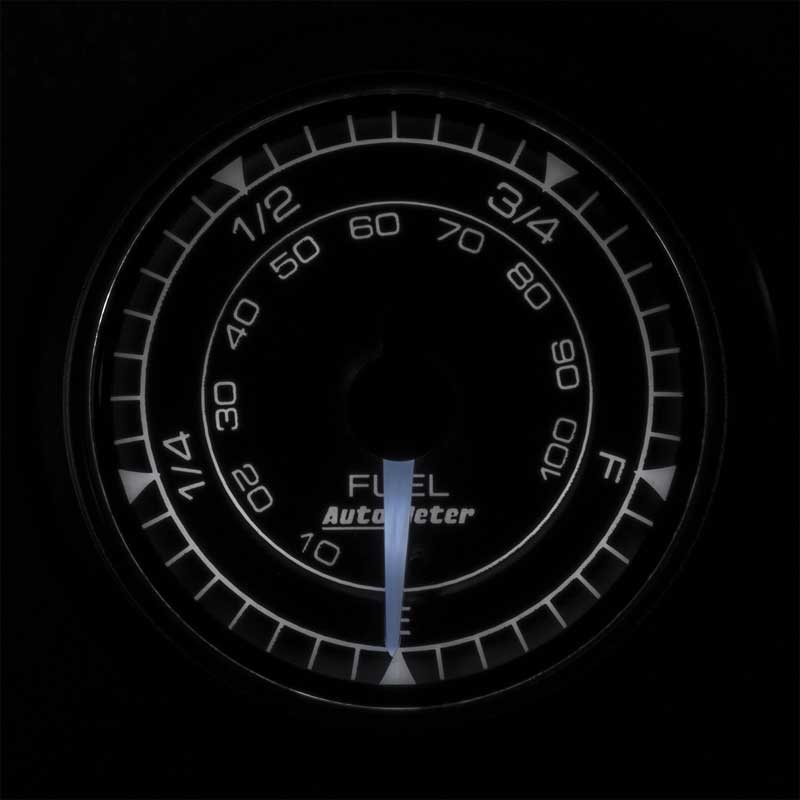

• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
• Adjustable Scale with 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• User definable resistance setting programmable anywhere between 0-280 ohms
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
