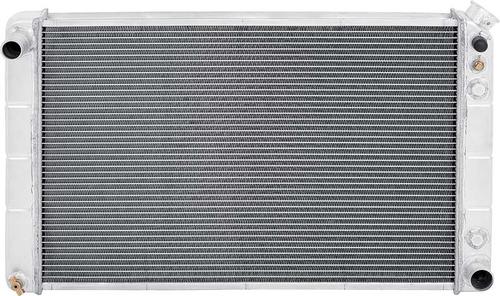

1970-87 with Automatic Transmission Dual Neck Cradle Mounted Aluminum Radiator (30-3/4" x 18-5/8")

Designed with race technology to provide your high performance engine with maximum cooling. This Northern® all aluminum replacement radiator is designed to offer 25-75% more cooling than ordinary copper/brass radiators and is specifically designed for your vehicle.

Features include a lightweight design (60% lighter than copper/brass), an ultra-duty transmission oil cooler (when applicable), thick hose connectors, reinforced die stamped tanks, a machined filler neck and all welded construction.

• Overall dimensions: 30-3/4" x 18-5/8" x 3-1/8"
• Core dimensions: 26-1/8" x 17-3/8" x 2-1/4"
• Inlet size: 1-5/16 and 1-1/2" dual neck
• Outlet size: 1-1/2"
• Number of rows: 2" rows of 1" tubes

For Northern aluminum fan shroud see part # Z40023 (sold separately).

For electric fan and shroud assembly see part # 40006 (sold separately).

Important: Due to the Ultra-duty design, this radiator may be thicker than your OEM radiator and may require modification s to the radiator mounts, fan shroud or automatic transmission cooler lines.

Note: Shipped oversize.

• 1970-79 Camaro all with automatic transmission
• 1973-84 Tr uck all L-6 250ci with automatic transmission
• 1973-87 Truck all L-6 292ci with automatic transmission
• 1975-79 Nova all models with automatic transmission
• 1980-87 Regal all models with automatic transmission

Application Notes: For manual transmission applications see part # CR5056.

Classic Industries® recommends purchasing part # FL32060 Cooling System Zinc Anode. This will keep the cooling system galvanic action from "eating" the aluminum radiator by having it attack the zinc instead. Fits any 1/4" NPT cooling system hole including the radiator drain hole.
