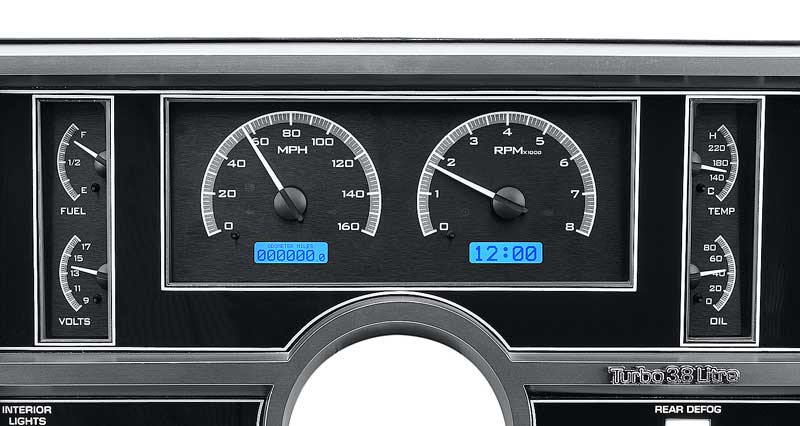

1984-87 Buick Regal - Dakota Digital VHX Gauge System Blue Display with Black Alloy Face

Dakota Digital's VHX instrumentation system will modernize your Buick Regal or Grand National with the latest technology and styling. Featuring fully lit needles, backlit faces and easy-to-read LCD message centers, the VHX series is a far cry from yest erday's traditional instrumentation.

This gauge system mounts directly to the stock dash housing for simple installation. VHX series gauges are loaded with features not often offered by competing systems, including micro-controlled precision ste pper motors, solid state sensors for unparalleled accuracy and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.

Made in USA

Speedometer: 0 -160 MPH
Tachometer: 0- 8,000 RPM
Oil Pressure: 0- 80 PSI
Water temperature: 100- 260° F
Fuel level: E, 1/4, 1/2, 3/4, F
Voltmeter: 9- 17 VDC
Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each numbe r, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face

Turn signals (Left / Right)
High beam
Check engine
Parking brake
Gear position: Requires sending unit / module DD1000 (sold separately).

Standard Displays:
Odometer (one time user settable, mil lion mile)
Dual (A/B) trip meter (0- 9,999.9)
Clock (12 hour)
Performance Meters:
0- 60 MPH timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Lighting:
Auto-contrasting LCD display for optimal view in the brightest of sunlight. LED backlit at night to match/ complete the look at night

Water temperature: 1/8" NPT, ground isolated sensor with a 10 ft har ness
Oil pressure: 1/8" NPT solid state sensor with a 10 ft harness
Cable driven speed sensor/ generator. Replaces GM style speedometer cables with a 10 ft harness
Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easil y accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Center.

Important: For the Grand National the boost gauge is displayed in the digital readout underneath either the speedometer or tachometer.

Note: Requires the use of the factory gauge bezel, not included.
