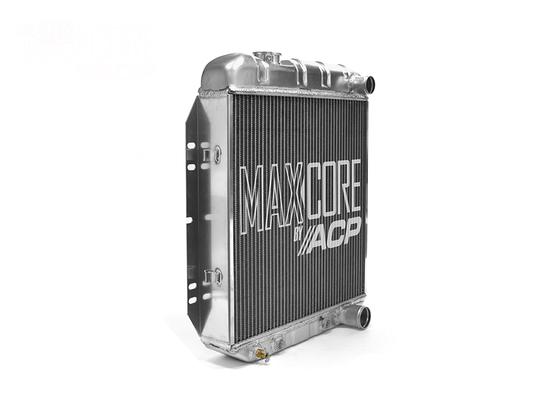

1963-65 Falcon, Ranchero, Comet,1965-66 Mustang; Aluminum Radiator; 3-Row;17"; 260, 289; Maxcore Performance

Reproduction of the original style radiator that looks great and fits just like the original Ford design. If you're looking to keep an authentic appearance, but you want improved performance, this is the radiator you want. Manufactured with the perfect blend of premium aluminum to form an OE appearance while maintaining excellent high-pressure strength and corrosion resistance. Fully tig-welded with a billet filler neck for continuous durability. Inspired by the original OE Ford radiator, this replacement is designed to capture the original appearance while improving the performance. Along with OE Styling comes a direc-fit replacement for a hassle-free installation. This radiator is designed and manufactured specifically for the 1965-66 Mustang. Note: Not designed as a universal replacement.

• Direct Fit OE Style
• Crafted Using Premium Aluminum
• TIG-Welded Construction
• Billet Filler Neck

• Overall Dimension: 17-3/8" x 21-1/2" x 3"
• Core Size: 17" x 16-1/2" x 2-1/2"
• Inlet Diameter: 1- 1/2" Top Right
• Outlet Diameter: 1- 3/4" Bottom Right
• Mounting Type / Width (hole to hole): Flange / 18-1/4"
• Tube Size: 3/4"
• Tubes per row: 41
• Fins Per Inch: 16
• Tube Spacing: 5/8"
• Auto Trans Cooler: Yes

PLUS means advantage. 3-ROW PLUS MAXCORE 0.75" design further maximizes the size of tubes, allowing for expanded flow and improved cooling.
