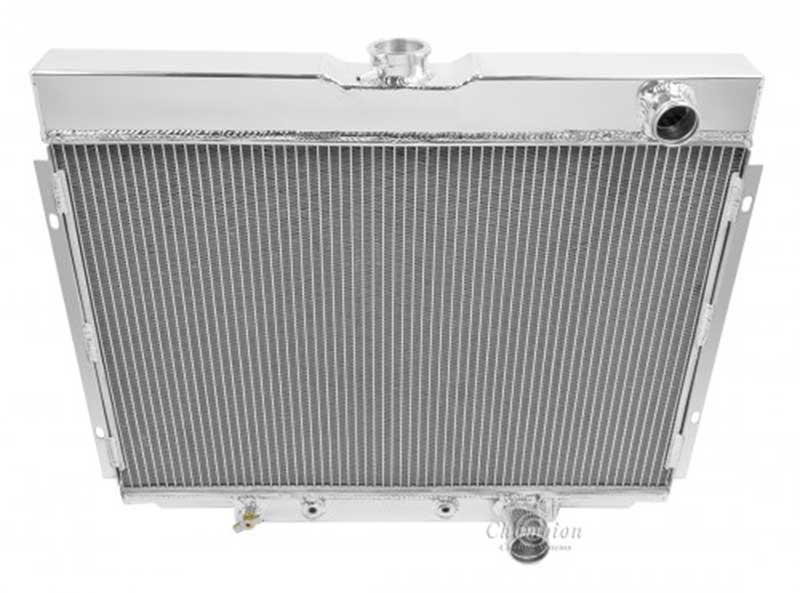

1967-70 Mustang, Cougar; 1969 Fairlane, Ranchero; Champion 24" Aluminum 2-Row Radiator; Natural Finish

Keep your Mustang cool without spending a small fortune on a radiator! Each Champion high performance aluminum radiator is specifically designed for each application and features a billet aluminum filler neck, 100% tig welded construction, aluminum brackets, brazed core, aircraft grade 2mm thick fittings and tanks, 14-16 cooling fins per inch, and 3/8" spaced tubes. Radiators also includes a brass O-ring petcock and high performance 16 pound radiator cap.

Please check application and configuration specifications below to ensure compatibility with your vehicle. For warranty issues, the vendor requires photos of the front and back of the radiator out of the vehicle. Photos of the leaking areas and a photo of the serial number.

Application: 1967-70 Mustang models 24" Wide Core:

• Radiator Flow: Down Flow

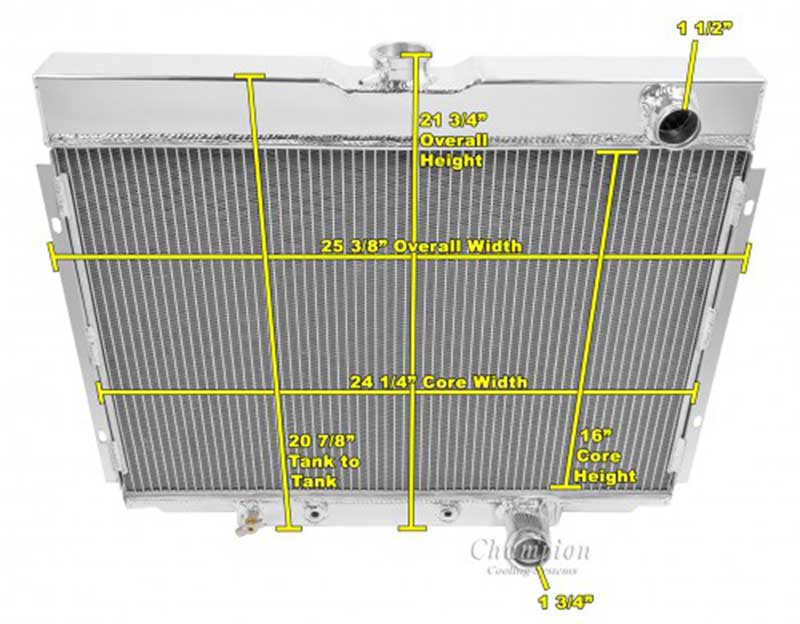

• Core Dimension: (H x W) - 16" x 24 1/2"
• Overall (H x W): 21 3/4" X 25 3/8"
• Hose Inlet: Passenger side
• Hose Out: Passanger side
• Inlet Hose: 1-1/2"
• Outlet Hose: 1-3/4"
• Trans Cooler:1/8"-27 Npt
• Mounting Type: Saddle Mount

• 1969 - 1969 Ford Fairlane
• 1967 - 1970 Ford Mustang

• 1969 - 1969 Ford Ranchero

• 1967 - 1970 Mercury Cougar
