1964-66 Mustang, 1960-65 Falcon, Comet, Ranchero; 5.0L Conversion; Champion Aluminum 3-Row Radiator; Polished Finish

Keep your Mustang cool without spending a small fortune on a radiator! Each Champion high performance aluminum radiator is specifically designed for each application and features a billet aluminum filler neck, 100% tig welded construction, aluminum brackets, brazed core, aircraft grade 2mm thick fittings and tanks, 14-16 cooling fins per inch, and 3/8" spaced tubes. Radiators also includes a brass O-ring petcock and high performance 16 pound radiator cap.

Please check application and configuration specifications below to ensure compatibility with your vehicle. For warranty issues, the vendor requires photos of the front and back of the radiator out of the vehicle. Photos of the leaking areas and a photo of the serial number.

Application: Late model Coyote 5.0L conversion:

• Radiator Flow: Down Flow

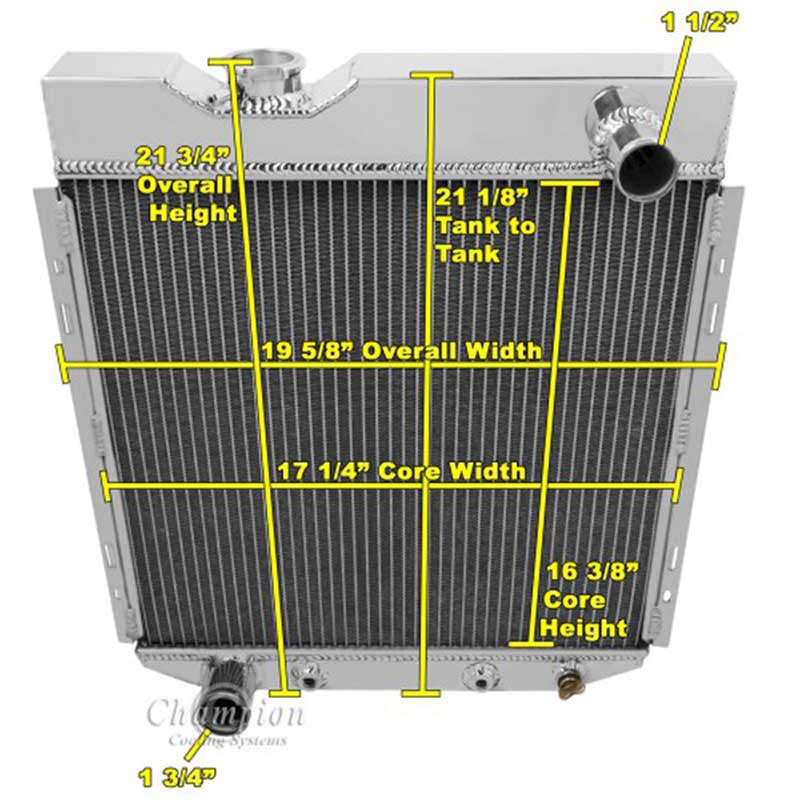

• Core Dimension: (H x W) - 16 3/8" x 17 1/4"
• Overall (H x W): 21 3/4" x 19 5/8"
• Hose Inlet: Passenger side
• Hose Out: Driver side
• Inlet Hose: 1-1/2"
• Outlet Hose: 1-3/4"
• Trans Cooler:1/8"-27 Npt
• Mounting Type: Bracket Mount
