Redline 5-3/4" Round Elite Diamond Headlamps w/out Halo - w/NovaStar H4 LED Bulbs

RedLine LumTronix headlamps allow 50% more light to shine through thanks to their crystal clear lenses and a special side lens that extends past the retaining ring. This side lens is a true a safety innovation and was designed to provide additional side light and increase visibility.

Each headlamp features a Euro-style diamond cut reflective base, diamond crystal glass, and a heat resistant composite housing.

Even though no paint or tint is applied to the glass or reflector, the Black Illusion headlamps look blacked out when off thanks to the halo and lamp shields that are painted black.

Headlamps are available with or without a halo, either single color halo (white) or multi-color halo (with 16 selectable colors plus the ability to adjust brightness), with or without turn signals and your choice of clear or blue H4 halogen bulbs or H4 LED bulbs.

The halo or "Angel Eyes" can also be wired as a daytime running lamp and features 23 low-temp LEDs with a 100,000+ hour life, along with "fade", "flash", "strobe", & "smooth" modes that you can choose with the included wireless remote.

Headlamps plug directly into your stock harness for a simple and easy installation. Each pair includes two headlights, two bulbs, dust boots, ceramic tip pigtail harness adapter & instructions. Multi color halo sets also include the RGB harness and wireless remote.

5-3/4 Inch Round Elite Diamond Headlight Enclosure Features:

• 5-3/4 Inch steel round housing
• Crystal clear glass lens
• No parabolics in the lens to block the light; an absolute clear lens
• Includes 55/60 watt 12 volt H4 halogen bulb
• Plugs directly into stock harness
• Replaceable bulb assembly
• Fluted parabolic pattern on the reflector
• Housing fits both High and Low beam bucket socket
• Housing fits almost all 5-3/4 inch buckets

Nova Star GT H4 LED Bulb Features:

• Lumens: 3000 lm (per bulb)
• Two and a half times brighter than Halogen
• Heat dissipating through radiator wicking technology
• Color Temperature: You choose from: 3000, 4300, 6500 (Default), 8000, 10000 DIY colored film
• Light Pattern: 360 degrees beam angle from spherical optics
• Life span: 50,000 hours
• Wattage: 40 Watt total (20 Watt per bulb) (half the wattage of the original sealed beam headlights)
• Technology: USA Made CREE-XHP-50 (low beam) w/PHILIPS LUXEON MZ (high beam)
• LEDs positioned on both sides to flood light into the whole headlight enclosure
• Input Voltage: 12v - 24v
• Connector: H4 or H13
• Plug and Play, easy to install
• All-In-One design
• Surrounding clear lens to evenly distribute light
• Low beam and high beam distance: 850 feet
• Reflective cup design to reduce reflective glare from oncoming drivers
• No fan to worry about
• No noise interference with radio
• No ballast or external driver to mount
• No relay harness required
• Flicker-free, dustproof, waterproof, vibration proof
• Integrated US made circuitry include: Texas Instrument, TDK, International Rectifier and Beryl
• 300% brighter than OEM bulbs
• 1 year manufacturer's warranty.
• Will fit between bucket and core support/splash guard

  Kit Includes:

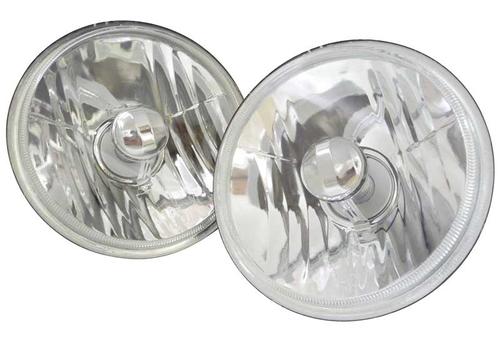

  • (2) 5-3/4 Inch Round White Diamond Headlights

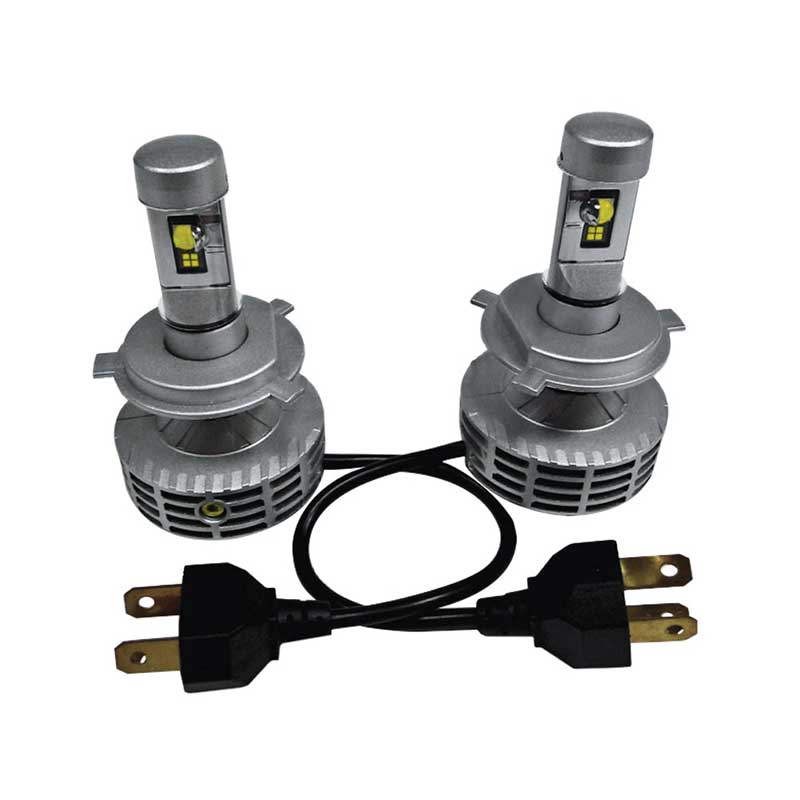

  • (2) NovaStar GT 40 watt 12 volt H4 LED bulbs

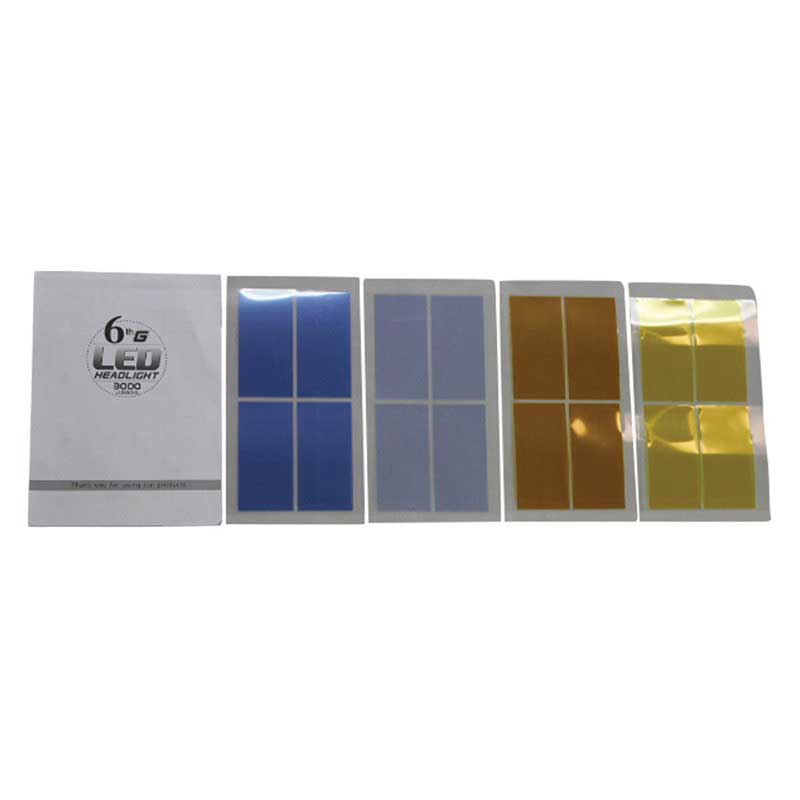

  • (1) DIY color temperature films to choose from: 3000, 4300, 6500 (Default), 8000, 10000
  • (6) Foam rubber pads to place in retainer ring for glass lens crack prevention

  Note: Blue halogen bulbs are blue in color when off, and bright white when on (no blue tint). Clear halogen bulbs are clear in color when off and bright white when on. LED bulbs include colored film to change the look and temperature color of your lights.

  Important: Will fit most vehicles (cars, trucks, motorcycles and motor homes) made from 1936 to 1979, as well as many vehicles made after 1979 that use a universal round style headlight.
