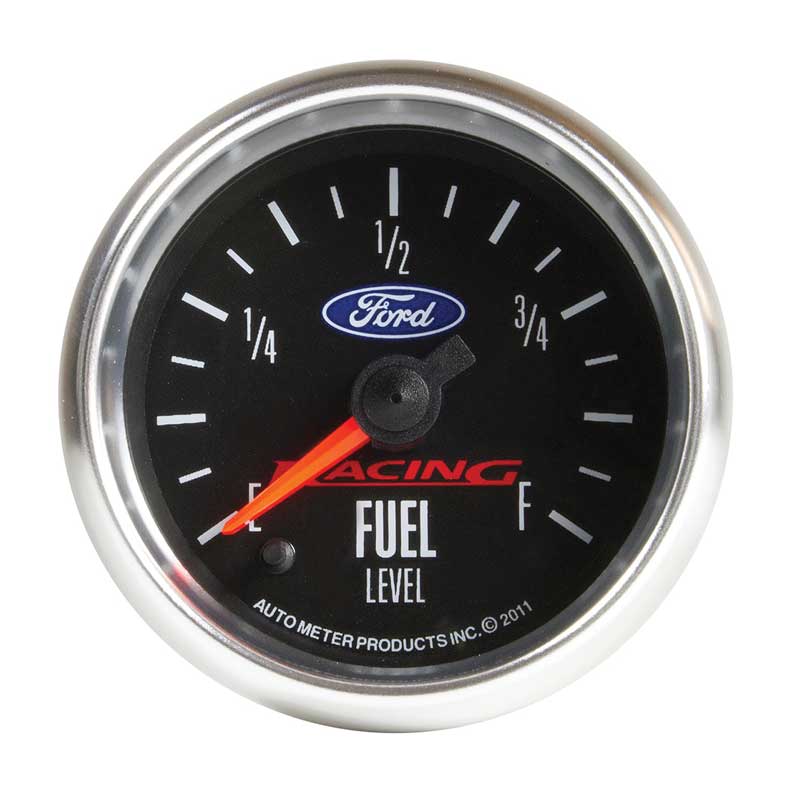

Ford Racing AutoMeter 2-1/16" Digital Stepper Motor 0-280 OHMs Universal Fuel Level Gauge

The Ford Racing gauges from AutoMeter feature an illuminated Ford Racing logo surrounded by crisp, white, OE-inspired lettering and bright anodized Super Bezels. Patented high-contrast glowing red pointers ensure accurate and easy-to-read information in any driving condition.

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered.

In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our ?snapshot? programming method will allow you to capture the empty and full readings and the gauge does the rest.

Made in USA

• Ford Racing logo
• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Adjustable Scale with 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• User definable resistance setting programmable anywhere between 0-280 ohms
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up

• 20' wiring harness
• Mounting hardware
• Detailed instructions
