BP3963 - Blue Print Engines; Crate Engine; GM Small Block V8; 396/491HP; With Roller Cam
BP3963 - Blue Print Engines; Crate Engine; GM Small Block V8; 396/491HP; With Roller Cam
Discontinued Item,
No Longer Available
- Product #: BP3963
- CATEGORY: Short Block Engines
- BRAND: BluePrint Engines
- SHIP TYPE: Truck |
- Emissions Compliance: Non-CARB Compliant |

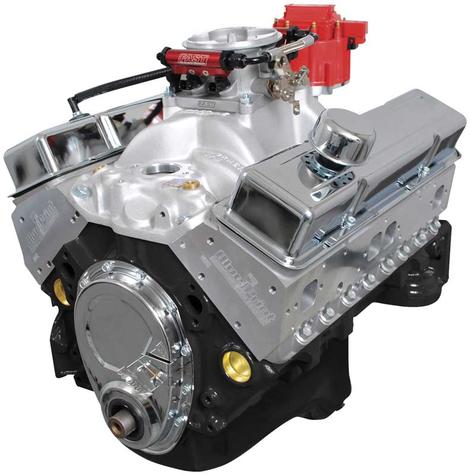

Blue Print Engines; Crate Engine; GM Small Block V8; 396/491HP; With Roller Cam
This 396 ci with 491 hp and 509 lbs of torque in a ready-to-run pump gas package. Includes a balanced rotating assembly, oil pan, Melling high volume oil pump, timing cover, valve covers, heavy duty double roller timing set, roller rockers, BluePrint o r Edelbrock dual plane intake manifold, F.A.S.T. EZ EFI injection system, and brass freeze plugs.
Specifications:
- HP: 491
- Torque: 509
- Engine Type: Chevy small block V8
- Displacement: 396 cid
- Block: 4 bolt main, 1 pc rear main seal w/ pass. side dipstick only
- Crankshaft: BluePrint or Scat forged steel
- Rods: forged
- Pistons: forged
- Rings: Hastings
- Camshaft Type: Roller
- Camshaft Lift:.510 in x.520 ex
- Duration @ 050° lobe separation: 230 in x 236 ex
- Cylinder Heads: BluePrint aluminum
- Chamber Size: 64 cc
- Valve Size: 2.08 in x 1.60 ex
- Compression Ratio: 10.4:1
- Recommended Fuel : 91 octane
- Recommended Oil : 10W30, Non-Synthetic. Not For EGR.
- Ign. Timing: 34° at 3500 RPM
Note: Not for use in pollution controlled vehicles..
Shippin g: Shipped truck freight direct from the manufacturer.
This product is discontinued and no longer available. No fitment can be displayed at this time.
Product Specifications
Shipping Dimensions- Weight: 500 Lbs
- Ship Type: Truck |
- Non-CARB Compliant: This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-polution-controlled vehicles only.
