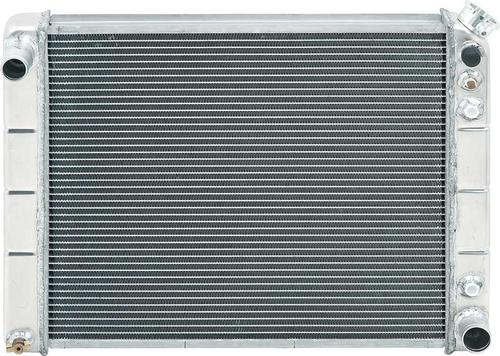

1968-93 with Automatic Transmission Dual Neck Cradle Mounted Aluminum Radiator (25-1/4" x 18-1/2")

Designed with race technology to provide your high performance engine with maximum cooling. This Northern® all aluminum replacement radiator is designed to offer 25-75% more cooling than ordinary copper/brass radiators and is specifically designed for your vehicle.

Features include a lightweight design (60% lighter than copper/brass), an ultra-duty transmission oil cooler (when applicable), thick hose connectors, reinforced die stamped tanks, a machined filler neck and all welded construction.

• Overall dimensions: 25-1/4" x 18-1/2" x 3-1/8".
• Core dimensions: 20-3/4" x 17-3/8" x 2-1/4".
• Inlet size: 1-5/16", 1-1/2" dual neck
• Outlet size: 1-1/2"
• Number of rows : 2" rows of 1" tubes.

For Northern aluminum fan shroud see part # Z40034 (sold separately).

For electric fan and shroud assembly see part # 40084 for 16" single fan or 40088 for 10" dual fans (both sold separately).

Important: Due to the Ultra-duty design, this radiator may be thicker than your OEM radiator and may require modifications to the radiator mounts, fan shroud or automatic transmission cooler lines.

Note: Shipped oversize.

• 1972-79 all Camaro with automatic transmission
• 1980 Camaro 231 V6 with automatic transmission
• 1970-76 Firebird 6 cylinder with automatic transmission
• 1991-93 Pick-up 305 V8 with automatic transmission
• 1991-92 Pick-up 350 V8 with automatic transmission
• 1971-73 Impala / full size L6 with automatic transmission
• 1968-74 all Nova with automatic transmission
• 1978-87 all Regal with automatic transmission

Application Notes: For manual transmission applications see part # CR5057.

Classic Industries® recommends purchasing part # FL32060 Cooling System Zinc Anode. This will keep the cooling system galvanic action from "eating" the aluminum radiator by having it attack the zinc instead. Fits any 1/4" NPT cooling system hole including the radiator drain hole.
