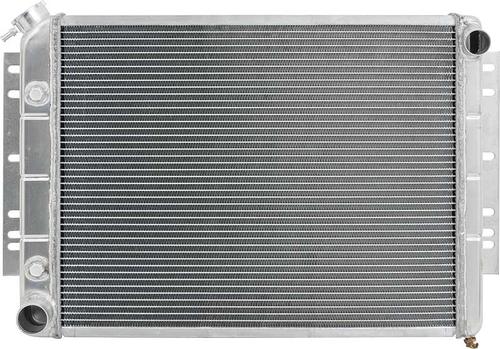

1970-76 Mopar A/B/E-Body Northern® 2 Row Aluminum Radiator

Northern® 2 Row Aluminum Radiator - Upper Inlet Passenger Side, Lower Outlet Driver Side

Upgrade your cooling system with this high performance bolt-in radiator from Northern® Radiator! Manufactured with race-proven technology, this r adiator is a two-row, 1" core tube design for maximum cooling efficiency.

• Bolt-in installation
• 60% lighter than copper / brass
• Designed to provide 25-75% more cooling capacity
• All-welded const ruction with no solder connections
• Heavy duty, die-stamped tanks
• Extra thick hose connections
• Billet filler neck
• 7 plate alumimum transmission cooler

Made in USA

OVERALL DIMENSIONS 29" X 18-1/2" X 3-1/8" (INCLUDES THE RADIATOR, TANKS & BRACKETS)

DIMENSIONS INCLUDING TANKS = 26-1/4" L X 18-1/2" H X 3-1/8" W

CORE DIMENSIONS 22-3/8" L X 17-3/8" H.

Important: Measurements may be needed for applications. Modification to the core support may be required for installation. Will work on both automatic and manual vehicles. Transmission cooling lines may have to be modified.

Note: Shipped oversize.

A-Body:
• 1974 Duster 318ci, 360ci
• 1974-76 Valiant 318ci, 360ci
B-Body:
• 1970 Belvedere 383ci, 440ci
• 1966-69 Ch arger all V8
• 1970-71 Charger 383ci, 440ci, 426ci
• 1972-73 Charger 400ci, 440ci
• 1974 Charger 318ci, 360ci
• 1970-71 Coronet 400ci, 440ci, 426ci
• 1970-71 Satellite 383ci, 440ci
E-Body:
• 1970 Barracuda 383ci, 426ci, 440ci
• 1971 Barracuda 383ci, 440ci
• 1972 Barracuda 400ci
• 1970-71 Challenger 383ci, 400ci, 426ci
• 1972 Challenger 400ci, 440ci

We also recommmend Part# FL32060 (sold separately) cooling system anode to protect your aluminum radiator.
