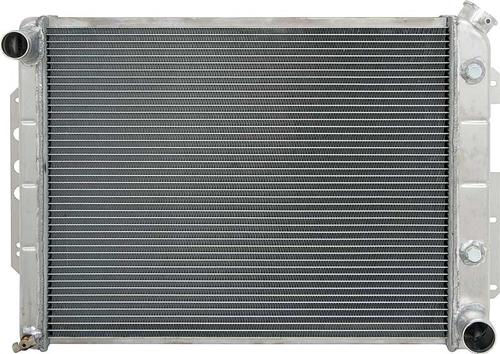

1967-69 Camaro/Firebird; Automatic Transmission; Aluminum Radiator (25-7/8" X 18-7/8)

Designed with race technology to provide your high performance engine with maximum cooling. This Northern® all aluminum replacement radiator is designed to offer 25-75% more cooling than ordinary copper/brass radiators and is specifically designed for your passenger car.

Features include a lightweight design (60% lighter than copper/brass), an ultra-duty transmission oil cooler (when applicable), thick hose connectors, reinforced die stamped tanks, a machined filler neck and all welded construction.

• Overall dimensions: 25-7/8" (27-5/8" including brackets) x 18-7/8" x 3-1/4".
• Core dimensions: 22" x 17-3/8" x 2-1/4".
• Inlet size: 1-1/2"
• Outlet size: 1-3/4"
• Number of rows: 2" rows of 1" tubes.

• For aluminum fan shroud see part # Z40030 (sold separately).
• To reuse original fan shroud use part # 50720 for mounting clips (sold separately).
• For electric fan and shroud assembly see part # 40013 (sold separately).

• 1967 - 1969 Chevrolet Camaro

• 1967 - 1969 Pontiac Firebird

• 1967-69 Camaro with 250, 327 and 350ci with automatic transmission
• 1967-69 Firebird with 250, 326 and 350ci with automatic transmission

Application Notes: For manual transmission applications see part # CR5125.

Important: Due to the Ultra-duty design, this radiator may be thicker than your OEM radiator and may require modifications to the radiator mounts, fan shroud or automatic transmission cooler lines.

Classic Industries® recommends purchasing par t # FL32060 Cooling System Zinc Anode. This will keep the cooling system galvanic action from "eating" the aluminum radiator by having it attack the zinc instead. Fits any 1/4" NPT cooling system hole including the radiator drain hole.
