D32012 - 1970-81 F-Body; Detroit Speed; Bare Metal Unassembled Subframe; Big Block
D32012 - 1970-81 F-Body; Detroit Speed; Bare Metal Unassembled Subframe; Big Block
Discontinued Item,
No Longer Available
- Product #: D32012
- CATEGORY: Subframe Assembly
- BRAND: Detroit Speed & Engineering
- SHIP TYPE: Truck |
- Emissions Compliance: Non-Emissions |
1970-81 F-Body; Detroit Speed; Bare Metal Unassembled Subframe; Big Block

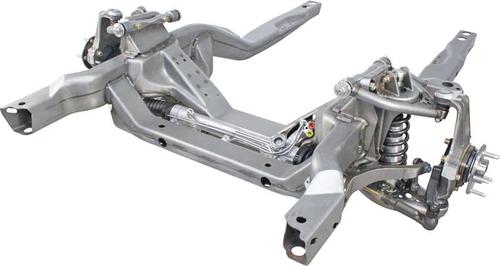

Detroit Speed & Engineering's all new front subframe is a bolt-in replacement for the original stock subframe. Utilizing DSE's industry-exclusive hydro-formed frame rails and unique suspension geometry, it improves ride quality and handling.
Hydroformed frame rails offer strength, stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness, unlike traditional high-temperature processes which decrease material strength, because it is performed at low temperatures. Both the main and secondary crossmembers are stamped for structural rigidity.
Set includes:- Hydro-formed frame rails
- Stamped crossmembers
- Tubular upper control arms with cross shafts
- Tubular lower control arms
- Forged spindles
- C6 Corvette Steering Knuckles with hubs (5 x 4-3/4" lug pattern with 12mm x1.5" studs)
- Coil-over shocks
- Coil-over springs
- Power Rack & Pinion steering
- Splined sway bar
- Composite sway bar bushings
- Spanner Tool for shock adjustments
This subframe features a 650 lb/in spring rate.
Made in USA
DSE's front subframe can accomodate a 10" wide wheel package with up to 335-series tires without modifying the inner wheel wells, but you must check fender lip clearance for turning. You can use any C6 Corvette brake package from stock to aftermarket.
Wheel fitment:- 17" x 10" Wheels*
- 18" x 8-10" Wheels
- 19" x 8-10"Wheels
Important: This subframe is sold in bare metal and is not assembled. If you opt for the powder coating option, assembly is included.
Note: Special order, must be prepaid. Non-returnable. Non-refundable. Please contact Classic Industries® by Phone, Fax or E-Mail to order this item. Shipped truck freight. No further discounts apply.
Applications:- 1970-81 Camaro with big blockengine
- 1970 -81 Firebird with big block or Pontiac engine
This product is discontinued and no longer available. No fitment can be displayed at this time.
Product Specifications
Shipping Dimensions- Weight: 420 Lbs
- Ship Type: Truck |
- Non-Emissions: This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included.
