1970-81 F-Body; Detroit Speed; Powder Coated Assembled Subframe; Small Block/LS

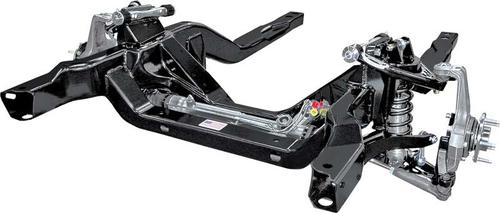

Detroit Speed & Engineering's all new front subframe is a bolt-in replacement for the original stock subframe. Utilizing DSE's industry-exclusive hydro-formed frame rails and unique suspension geometry, it improves ride quality and handling.

Hydroformed frame rails offer strength, stiffness, precise quality and repeatability. Hydroforming preserves the steel's strength and stiffness, unlike traditional high-temperature processes which decrease material strength, because it is performed at low temperatures. Both the main and secondary crossmembers are stamped for structural rigidity.

• Hydro-formed frame rails
• Stamped crossmembers
• Tubular upper control arms with cross shafts
• Tubu lar lowe rcontrol arms
• Forged spindles
• C6 Corvette Steering Knuckles with hubs (5 x 4-3/4" lug pattern with 12mm x1.5" studs)
• Coil-over shocks
• Coil-over springs
• Power Rack & Pinion steering
• Spl ined sway bar
• Composite sway bar bushings
• Spanner Tool for shock adjustments

This subframe features a 550 lb/in spring rate and is for small block Chevrolet and LS-series engines.

Made in USA

DSE's front subframe can accomodate a 10" wide wheel package with up to 335-series tires without modifying the inner wheel wells, but you must check fender lip clearance for turning. You can use any C6 Corvette brake package from stock to aftermarket.

• 17" x 10" Wheels*
• 18" x 8-10" Wheels
• 19" x 8-10"Wheels

Important: This assembled subframe is finished in satin black. Upper and lower control arms, and sway bar arms are gloss black.

Note: Special order, must be prepaid. Non-returnable. Non-refunda ble. Please contact Classic Industries® by Phone, Fax or E-Mail to order this item. Shipped truck freight. No further discounts apply.

• 19 70-81 Camaro with small block or LS engine
• 1970-81 Firebird with small block Chevrolet or LS engine
