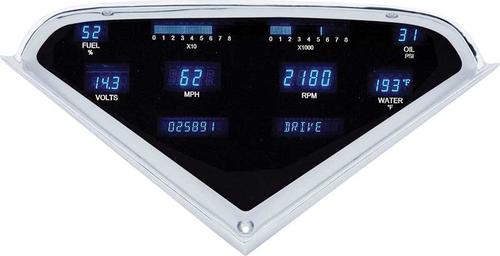

DD1004B - 1955-59 (2nd Series) Chevrolet Pickup Digital Dash Kit with Blue and Teal Lens

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!

Made in USA

Designed to fit directly into the original or reproduction instrument bezel on 1955-59 (2nd Series) Chevrolet trucks.

Speedometer: 0-255 MPH
Tachometer: 0-17,500 RPM
Oil Pressure: 0-99 PSI
Water temperature: 0-300° F
Fuel level: 0-99%
Voltmeter: 8-17 VDC

Turn signals (Left / Right)
High beam
Check engine
Parking brake
Cruise Control (On/ On and Engaged when vehicle is equipped)
Gear position: Requires sending unit / module DD1000 (sold separately) for all automatic transmission models

Standard Displays:
Odometer (one time user settable, million mile)
Dual (A/B) trip meter (0-9,999.9)
Performance Meters:
0-60 MPH timer (0-100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Water temperature: 1/8" NPT, ground isolated sensor with a 10 foot harness
Oil pr essure: 1/8" NPT solid state sensor with a 10 foot harness
Cable driven speed sensor/ generator. Replaces GM style speedometer cables with a 10 foot harness
Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Note: Shown with Bezel for illustration purposes. Bezel not included. Re-use original or purchase reproduction part # CX1003.
