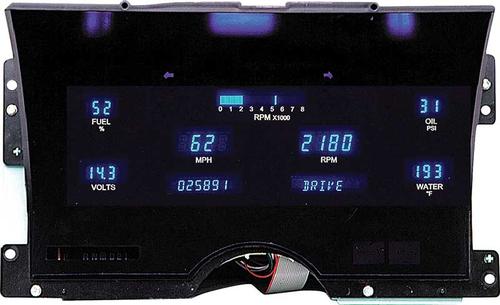

1988-91 Full Size Pickup Digital Dash Set

Customize your dash with modern vacuum fluorescent digital instrumentation. The 6 gauge style has individual speedometer and tachometer readings and installs in your original bezel. Comes with a blue and a teal lens to choose from.

This set is an excellent way to modernize your classic truck for the 21st century!

Made in USA

Designed to fit directly into the original instrument cluster on 1988-91 Chevrolet / GMC Fullsize Pickups with factory gauges.

Speedometer: 0-255 MPH
Tachometer: 0-17,500 RPM
Oil Pressure: 0-99 PSI
Water Temperature: 0-300° F
Fuel Level: 0-99%
Voltmeter: 8-17 VDC

Turn Signals (Left /Right)
High Beam
Check Engine
Parking Brake
Cruise Control: On/ On and Engaged When Vehicle is Equipped)
Gear position: Requires Sending Unit / Module DD1000 (sold separately) for All Automatic Transmission Models

Standard Displays:
Odometer (one time user settable, million mile)
Dual (A/B) Trip Meter (0-9,999.9)
Performance Meters:
0-60 MPH Timer (0-100 KMH)
1/4 Mile Time
1/4 Mile End Speed (trap speed)
High Speed Recall
High RPM Recall

Water Temperature: 1/8" NPT, Ground Isolated Sensor with a 10 foot Harness
Oil Pressure: 1/8" NPT Solid State Sensor with a 10 foot Harness
Cable Driven Speed Sensor/Generator. Replaces GM Style Speedometer Cables with a 10 foot Harness
Bushings: Each Set Comes with 1/8" to 1/4", 3/8" and 1/2" NPT Bushings Along with Bushings for 12mm and 16mm x 1.5 Threads

Dakota Digital instruments are programmed and operated by the push of a button
Simply mount the included push buttons supplied with your gauges in a convenient and easily accessible location
These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge
Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers

Important: This set will fit models with the original gauge package but did NOT have a factory tachometer. They will not work on models equipped with warning lights only.

Note: Optional dimmer switch part # DD1045 is also available and sold separately (stock dimmer switches will not work with Dakota Digital Instrument Systems).
