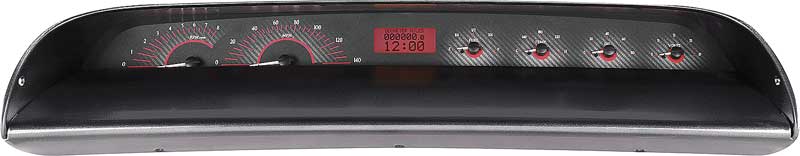

1963-64 Impala / Full-Size VHX Gauge System with Carbon Fiber Look Face and Red Illumination

Dakota Digital's new VHX instrumentation system will modernize your ride with the latest technology and styling. Featuring fully lit needles, backlit faces and easy-to-read LCD message centers, the VHX series is a far cry from yesterday's traditionalin strumentation.

Mounts directly to the stock dash housing for simple installation. The VHX series is loaded with features not often offered by competing systems, including micro-controlled precision stepper motors, solid state sensors for unparal leled accuracy and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.

Made in USA

• Analog VHX Display
• Control box
• Sensors
• Sensor adaptor bushings
• Instructions

Specifications:

Speedometer: 0 -140 MPH
Tachometer: 0- 8,000 RPM
Oil Pressure: 0- 80 PSI
Water temperature: 100- 260° F
Fuel level: E, 1/4, 1/2, 3/4, F
Voltmeter: 9- 17 VDC
Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series o f LEDs behind the gauge face

Turn signals (Left / Right)
High beam
Check engine
Parking brake
Gear position: Requires sending unit / module DD1000 (sold separately).

Standard Displays:
Odometer (one time user settable, million mile)
Dual (A/B) trip meter (0- 9,999.9)
Clock (12 hour)
PerformanceMet ers:
0- 60 MPH timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Lighting:
Auto-contrasting LCD display for optimal view in the brightest of sunlight. LED backlit at night to match/ complete the look at night

Water temperature: 1/8" NPT, ground isolated sensor with a 10 foot harness
Oil pressure: 1/8" NPT solid state sensor with a 10 foot harness
Cable drive n speed sensor/ generator. Replaces GM style speedometer cables with a 10 foot harness
Bushings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Da kota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the c ylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Center.

Important: Bezel shown for illustrative purposes only and is not included.
