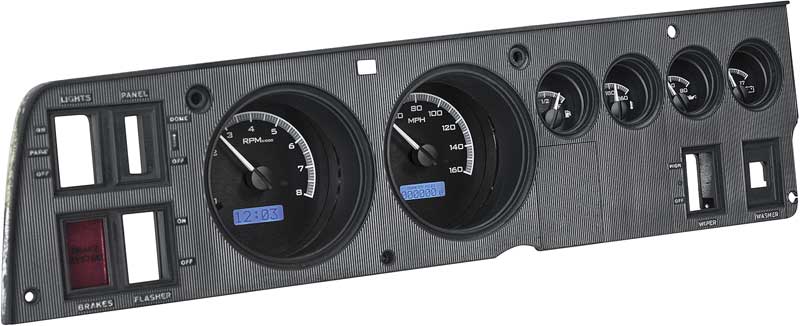

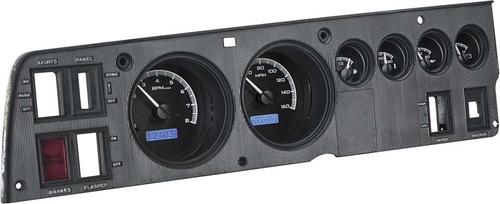

1968-70 Mopar B-Body with Rallye Dash VHX Gauge System, Black Alloy Face and Blue Illumination

Dakota Digital's new VHX instrumentation system will modernize your ride with the latest technology and styling. Featuring fully lit needles, backlit faces and easy-to-read LCD message centers, the VHX series is a far cry from yesterday's traditional instrumentation.

VHX System fits directly into the stock Rallye instrument bezel of a 1968-70 Dodge Charger/Super Bee, 1969-70 Coronet, 1970 Plymouth GTX/Roadrunner without modification, adding a wealth of features to these iconic vehicle. The VHX series is loaded with features not often offered by competing systems, including micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy and user-customizable display feedback, all supported by an unrivaled limited lif etime warranty which has become the standard for Dakota Digital instrumentation systems.

Made in USA

• Analo g VHX Display
• Control box
• Sensors
• Sensor adaptor bushings
• Instructions

Specifications:

Speedometer: 0 -160 MPH
Tachometer: 0- 8,000 RPM
Oil Pressure: 0- 80 PSI
Water temperature: 100- 260° F
Fuel level: E, 1/4, 1/2, 3/4, F
Voltmeter: 9- 17 VDC
Lighting: Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is tr uly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face

Turn signals (Left / R ight)
High beam
Check engine
Parking brake
Gear position: Requires sending unit / module DD1000 (sold separately).

Standard Displays:
Odometer (one time user settable, million mile)
Dual (A/B) trip meter (0- 9,999.9)
Clock (12 hour)
PerformanceMeters:
0- 60 MPH timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall

Lighting:
Auto-contrasting LCD display for optimal view in the brightest of sunlight. LED backlit at night to match/ complete the look at night

Wa ter temperature: 1/8" NPT, ground isolated sensor with a 10 foot harness
Oil pressure: 1/8" NPT solid state sensor with a 10 foot harness
Cable driven speed sensor/ generator. Replaces GM style speedometer cables with a 10 foot harness
Bush ings: Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the i ncluded pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Center.

Important: Bezel shown for illustrative purposes only and is not included.
