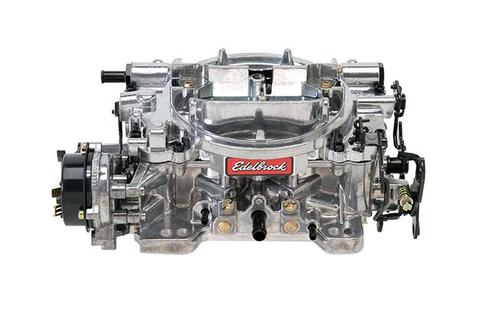

E1801 - Edelbrock 500 CFM Thunder Series AVS Square Flange Electric Choke/Non EGR - Satin Finish
E1801 - Edelbrock 500 CFM Thunder Series AVS Square Flange Electric Choke/Non EGR - Satin Finish
Discontinued Item,
No Longer Available
- Product #: E1801
- CATEGORY: Carburetors - Performance
- SHIP TYPE: Standard |
Edelbrock 500 CFM Thunder Series AVS Square Flange Electric Choke/Non EGR - Satin Finish
Edelbrock Thunder Series 500cfm carburetor is designed and calibrated for small cubic-inch engines such as 305 c.i.d and smaller Chevrolet; 302 c.i.d. and smaller Ford and dual-quad applications. For single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance.
Note: For Use on Pre-Pollution Controlled Vehicles (PPCV).
Calibrated for single-quad applications and factory equipped with:
- Primary -.086
- Secondary -.095
- Primary Rod.065 x.052
- Set-Up Orange Spring (5" Hg)
Metering Jets:
This product is available for all vehicles.
Product Specifications
Shipping Dimensions- Weight: 9 Lbs
- Dimensions: L: 13" x W: 11" x H: 7"
- Ship Type: Standard |
Edelbrock 500 CFM Thunder Series AVS Square Flange Electric Choke/Non EGR - Satin Finish
Edelbrock Thunder Series 500cfm carburetor is designed and calibrated for small cubic-inch engines such as 305 c.i.d and smaller Chevrolet; 302 c.i.d. and smaller Ford and dual-quad applications. For single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance.
Note: For Use on Pre-Pollution Controlled Vehicles (PPCV).
Calibrated for single-quad applications and factory equipped with:
- Primary -.086
- Secondary -.095
- Primary Rod.065 x.052
- Set-Up Orange Spring (5" Hg)
Metering Jets:
This product is available for all vehicles.
Product Specifications
Shipping Dimensions- Weight: 9 Lbs
- Dimensions: 13" x 11" x 7"
- Ship Type: Standard |
