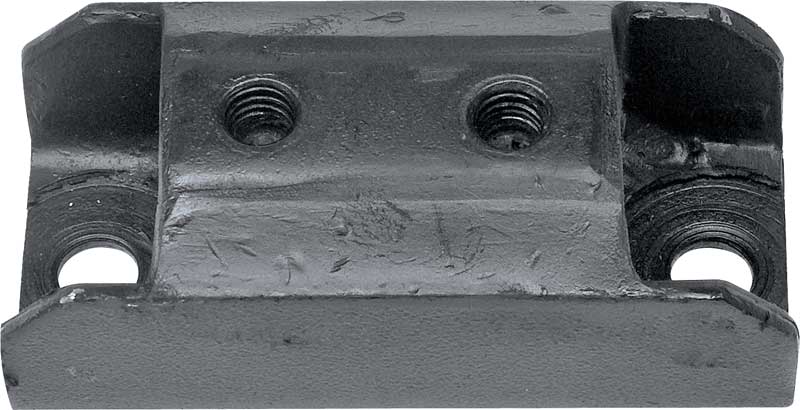

1957-84 GM; Various Models; Transmission Mount

OEM style transmission mount designed for use with the various 1957-84 GM models listed below. This mount is used to attach the transmission tail shaft to the crossmember and eliminate vibration. This original style mount differs cosmetically from the original but will fit and install correctly.

• Technical Specifications: 4-3/4" long x 2-1/4" wide x 1-3/4" high
• Technical Specifications: top mounting holes: 1-5/8" apart
• Technical Specifications: bottom mounting holes: 3-3/4" apart

• 1973 - 1974 Buick Apollo
• 1965 - 1972 Buick Electra
• 1970 - 1972 Buick Estate Wagon
• 1968 - 1969 Buick GS 400
• 1970 - 1972 Buick GS 455
• 1966 - 1974 Buick LeSabre
• 1966 - 1972 Buick Skylark
• 1968 - 1969 Buick Special
• 1966 - 1972 Buick Sportwagon
• 1965 - 1970 Buick Wildcat

• 1957 - 1972 Chevrolet Bel Air
• 1958 - 1972 Chevrolet Biscayne
• 1958 - 1972 Chevrolet Brookwood
• 1967 - 1979 Chevrolet Camaro
• 1966 - 1972 Chevrolet Caprice
• 1962 - 1968 Chevrolet Chevy II Nova
• 1962 - 1981 Chevrolet Corvette
• 1957 - 1958 Chevrolet Del Ray
• 1958 - 1973 Chevrolet Impala
• 1970 - 1972 Chevrolet Kingswood
• 1957 - 1961 Chevrolet Nomad
• 1969 - 1974 Chevrolet Nova
• 1957 - 1957 Chevrolet One-Fifty Series
• 1970 - 1972 Chevrolet Townsman
• 1957 - 1957 Chevrolet Two-Ten Series

• 1969 - 1974 Chevrolet Blazer
• 1975 - 1981 Chevrolet C10
• 1960 - 1967 Chevrolet C10 Panel
• 1960 - 1974 Chevrolet C10 Pickup
• 1967 - 1981 Chevrolet C10 Suburban
• 1982 - 1982 Chevrolet C15
• 1975 - 1982 Chevrolet C20
• 1967 - 1967 Chevrolet C20 Panel
• 1960 - 1974 Chevrolet C20 Pickup
• 1967 - 1982 Chevrolet C20 Suburban
• 1975 - 1982 Chevrolet C30
• 1960 - 1966 Chevrolet C30 Panel
• 1960 - 1974 Chevrolet C30 Pickup
• 1959 - 1960 Chevrolet El Camino
• 1963 - 1969 Chevrolet K10 Pickup
• 1967 - 1967 Chevrolet K20 Panel
• 1963 - 1969 Chevrolet K20 Pickup
• 1968 - 1969 Chevrolet K30 Pickup
• 1975 - 1981 Chevrolet K5 Blazer
• 1960 - 1982 Chevrolet Truck

• 1975 - 1982 Chevrolet G10
• 1968 - 1974 Chevrolet G10 Van
• 1975 - 1982 Chevrolet G20
• 1968 - 1974 Chevrolet G20 Van
• 1975 - 1982 Chevrolet G30
• 1970 - 1974 Chevrolet G30 Van
• 1975 - 1980 Chevrolet P10
• 1968 - 1974 Chevrolet P10 Van
• 1975 - 1984 Chevrolet P20
• 1968 - 1974 Chevrolet P20 Van
• 1975 - 1984 Chevrolet P30
• 1968 - 1974 Chevrolet P30 Van

• 1975 - 1978 GMC C15
• 1975 - 1978 GMC C15 Suburban
• 1967 - 1974 GMC C15/C1500 Pickup
• 1967 - 1974 GMC C15/C1500 Suburban
• 1979 - 1981 GMC C1500
• 1979 - 1981 GMC C1500 Suburban
• 1975 - 1978 GMC C25
• 1975 - 1978 GMC C25 Suburban
• 1967 - 1974 GMC C25/C2500 Pickup
• 1967 - 1974 GMC C25/C2500 Suburban
• 1979 - 1982 GMC C2500
• 1979 - 1982 GMC C2500 Suburban
• 1975 - 1978 GMC C35
• 1967 - 1974 GMC C35/C3500 Pickup
• 1979 - 1982 GMC C3500
• 1970 - 1981 GMC Jimmy
• 1967 - 1969 GMC K15/K1500 Pickup
• 1967 - 1969 GMC K25/K2500 Pickup
• 1968 - 1969 GMC K35/K3500 Pickup
• 1960 - 1982 GMC Truck

• 1975 - 1978 GMC G15
• 1968 - 1974 GMC G15/G1500 Van
• 1979 - 1982 GMC G1500
• 1975 - 1978 GMC G25
• 1968 - 1974 GMC G25/G2500 Van
• 1979 - 1982 GMC G2500
• 1975 - 1978 GMC G35
• 1970 - 1974 GMC G35/G3500 Van
• 1979 - 1982 GMC G3500

• 1966 - 1970 Oldsmobile 98
• 1967 - 1968 Oldsmobile Delmont 88
• 1965 - 1970 Oldsmobile Delta 88
• 1965 - 1966 Oldsmobile Dynamic
• 1964 - 1966 Oldsmobile Jetstar 88
• 1965 - 1965 Oldsmobile Jetstar I
• 1973 - 1975 Oldsmobile Omega
• 1965 - 1966 Oldsmobile Starfire
• 1966 - 1974 Oldsmobile Toronado
• 1964 - 1975 Oldsmobile Vista Cruiser

• 1978 - 1979 Pontiac Catalina
• 1967 - 1979 Pontiac Firebird
• 1973 - 1975 Pontiac Grand Am
• 1975 - 1981 Pontiac Grand LeMans
• 1967 - 1973 Pontiac GTO
• 1966 - 1979 Pontiac Laurentian
• 1964 - 1976 Pontiac LeMans
• 1967 - 1969 Pontiac Parisienne
• 1964 - 1970 Pontiac Tempest
• 1971 - 1975 Pontiac Ventura

• 1967-1969 Camaro (230ci AT or MT)
• 1967-1969 Camaro (327ci AT or MT)
• 1967-1969 Camaro (302ci AT or MT)
• 1967-1970 Camaro (396ci TH350 and MT)
• 1967-1972 Camaro (350ci TH350 and MT)
• 1968-1973 Camaro (307ci AT or MT)
• 1968-1974 Camaro (250ci 4-speed MT) (without Z28)
• 1968-1975 Camaro (250ci AT)
• 1970-1971 Camaro (400ci MT and TH350)
• 1970-1972 Camaro (402ci with 4-speed MT or TH350)
• 1973-1974 Camaro (350ci TH400)
• 1973-1975 Camaro (350ci MT)

• 1968-1975 Firebird (250ci AT or MT)
• 1967-1974 Firebird (400ci MT)
• 1967-1979 Firebird (400ci TH350)
• 1969-1974 Firebird (350ci with MT or TH350)
• 1971-1974 Firebird (455ci with TH350)

• 1960-1981 Pickup Truck (all engines Powerglide or TH350)
• 1960-1981 Pickup Truck(all engines 3 or 4 Speed MT)

• 1979-1981 Pickup Truck (all L-6 or V8 with TH350)
• 1979-1981 Pickup Truck (250 L-6 or 305-454 V8 MT)
• 1979-1982 Pickup Truck (292 L-6 MT)

• 1958-1961 Impala, Bel Air, Biscayne (236ci) (with MT)
• 1958-1961 Impala, Bel Air, Biscayne (348ci) (all with MT)
• 1958-1968 Impala, Bel Air, Biscayne, Caprice (283c)i (with MT or Turbo)
• 1961-1965 Impala, Bel Air, Biscayne(409ci) (with MT or Turbo)
• 1962-1964 Impala, Bel Air, Biscayne (230c)i (with MT or Turbo)
• 1962-1969 Impala, Bel Air, Biscayne, Caprice (327c)i (with MT)
• 1963-1964 Impala, Bel Air, Biscayne (230c)i (Aluminum Powerglide)
• 1965-1972 Impala, Bel Air, Biscayne, Caprice (250c)i (3 Speed MT)
• 1965-1968 Impala, Bel Air, Biscayne, Caprice (396ci) (with AT/MT)
• 1965-1967 Impala, Bel Air, Biscayne, Caprice (427ci) (with MT)
• 1966-1968 Caprice (396ci with AT)
• 1968-1968 Bel Air, Biscayne (307ci with AT/MT)
• 1968-1968 Impala (396ci AT/MT)

• 1962-1970 Chevy II Nova (153ci with AT or MT)
• 1962-1967 Chevy II Nova (194ci with AT or MT)
• 1964-1966 Chevy II Nova (230ci with AT or MT)
• 1967-1969 Chevy II Nova (250ci with AT or MT)
• 1962-1967 Chevy II Nova (283ci with MT)
• 1968-1969 Chevy II Nova (307ci with AT or MT)
• 1968-1973 Chevy II Nova (307ci with MT)
• 1965-1968 Chevy II Nova (327ci with AT or MT)
• 1967-1968 Chevy II Nova (350ci with TH400)
• 1969-1974 Nova (350ci with AT or MT)
• 1968-1969 Chevy II Nova (396ci with TH350 or MT)
• 1970-1970 Nova (396ci with AT or MT)
• 1970-1970 Nova (402ci with TH350 or 4 Speed MT)
