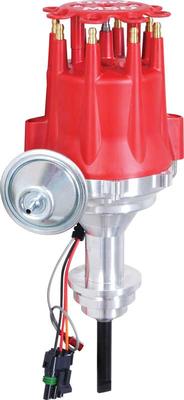

MSD; 1960-76 Mopar; 426-440; Ready-To-Run Pro-Billet Distributor; With Vacuum Advance; With Built-In Ignition Module And Rev Limiter

This distributor features a flawless lightweight CNC-machined 6061-T-6 billet aluminum housing and a polished steel shaft with a QPQ, or Tuftride coating. This process produces a durable finish that reduces friction and resists corrosion.

To accurately guide the shaft, MSD uses a sealed ball bearing located at the top of the housing. At the bottom of the housing, an extra long sintered bushing controls the shaft. This combination keeps the shaft spinning smooth and accurately throughout 10,0 00+ rpm.

• Simple and clean installation with only three wires to connect
• Powerful built-in module produces a 7.5 amp single spark through high rpm
• Easy-to-adjust mechanical advance with supplied sprin gs and stop bushings
• Vacuum advance canister for improved economy (can be lockedout)
• CNC machined billet aluminum housing and billet aluminum base
• Iron drive gear
• Maintenance-free magnetic pickup and precision reluc tor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided bysealed ball bearings
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Supplied with a HEI style dis tributor cap and rotor
• Does not require an MSD Ignition Control
• C. A. R. B. (California Air Resources Board) Approved E.O. D-40-26
• Includes built-in Rev Limiter * (a built-in rev limiter will keep y our engine safe from over-rev in the case of missed shifts or drive-line failure)

Note: No further discounts apply.

• 1. Ground the Gray tach output wire.
• 2. Turn on power to the ignition without cranking the engine.
• 3. Hold the Gray tach output wire to ground for seven seconds. (AT LEAST five seconds.)
• 4. Release the wire from ground before ten seconds have passed.
• 5. To confirm the process has worked, cycle the ignition power off and b ack on.
• To activate the feature again, repeat the same process.

• Important: CARB EO# D-40-39

• 1963 - 1971 Chrysler 300
• 1966 - 1975 Chrysler Imperial
• 1963 - 1978 Chrysler New Yorker
• 1963 - 1978 Chrysler Newport
• 1963 - 1977 Chrysler Town & Country
