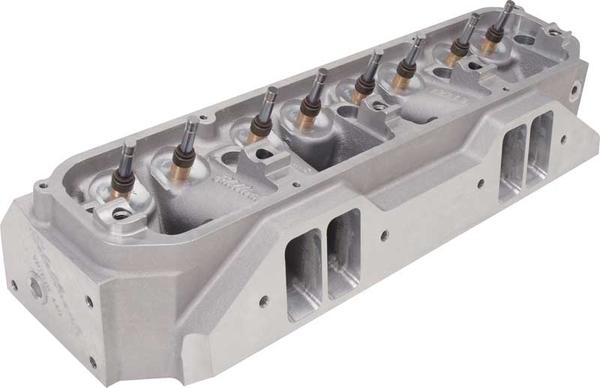

E61179 - 1961-76 Mopar W/ Hemi (426-572Ci) Engine - Edelbrock Victor Jr Series Complete Cylinder Head
E61179 - 1961-76 Mopar W/ Hemi (426-572Ci) Engine - Edelbrock Victor Jr Series Complete Cylinder Head
Out of Stock
- Product #: E61179
- CATEGORY: Headers
- BRAND: Edelbrock Performance Products
- SHIP TYPE: Overweight |
- Emissions Compliance: Non-CARB Compliant |
1961-76 Mopar W/ Hemi (426-572Ci) Engine - Edelbrock Victor Jr Series Complete Cylinder Head
Our new Victor Jr. cylinder heads are designed for high output 650+ hp Chrysler 426-572 HEMI® engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. The HEMI heads feature combustion chamber volume: 170cc, intake runner volume : 245cc, exhaust runner volume: 105cc, intake valve diameter: 2.32", exhaust valve diameter: 1.94", valve stem diameter: 5/16", valve guides: maganese bronze, deck thickness: 5/8", valve spring diameter: 1.54", valve spring maximum lift:.700", rocker stu d: N/A, guideplate: N/A, pushrod diameter: 5/16" or 3/8", valve angle: intake (stock) / exhuast. tipped 1.5° - 21.5°, exhaust port location: stock.
Note: Recommend 14mm x 3/4" reach spark plugs with flat gasket seat (Champion RC12YC). Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using.
Chrysler Applications- 1962 - 1971 Chrysler 300
- 1967 - 1975 Chrysler Imperial
- 1965 - 1976 Chrysler New Yorker
- 1965 - 1976 Chrysler Newport
- 1965 - 1976 Chrysler Town & Country
- 1963 - 1964 Dodge 330
- 1963 - 1964 Dodge 440
- 1963 - 1963 Dodge 880
- 1970 - 1974 Dodge Challenger
- 1966 - 1976 Dodge Charger
- 1965 - 1976 Dodge Coronet
- 1962 - 1976 Dodge Dart
- 1961 - 1962 Dodge Lancer
- 1965 - 1976 Dodge Monaco
- 1962 - 1973 Dodge Polara
- 1964 - 1974 Plymouth Barracuda
- 1962 - 1970 Plymouth Belvedere
- 1970 - 1974 Plymouth Cuda
- 1970 - 1976 Plymouth Duster
- 1962 - 1974 Plymouth Fury
- 1967 - 1971 Plymouth GTX
- 1968 - 1975 Plymouth Road Runner
- 1965 - 1974 Plymouth Satellite
- 1962 - 1964 Plymouth Savoy
- 1972 - 1976 Plymouth Scamp
- 1970 - 1970 Plymouth Superbird
- 1961 - 1976 Plymouth Valiant
- 1967 - 1967 Plymouth VIP
This product fits the following vehicle applications. Click to view individual years.
Product Specifications
Shipping Dimensions- Weight: 30 Lbs
- Ship Type: Overweight |
- Non-CARB Compliant: This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-polution-controlled vehicles only.
1961-76 Mopar W/ Hemi (426-572Ci) Engine - Edelbrock Victor Jr Series Complete Cylinder Head
Our new Victor Jr. cylinder heads are designed for high output 650+ hp Chrysler 426-572 HEMI® engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. The HEMI heads feature combustion chamber volume: 170cc, intake runner volume : 245cc, exhaust runner volume: 105cc, intake valve diameter: 2.32", exhaust valve diameter: 1.94", valve stem diameter: 5/16", valve guides: maganese bronze, deck thickness: 5/8", valve spring diameter: 1.54", valve spring maximum lift:.700", rocker stu d: N/A, guideplate: N/A, pushrod diameter: 5/16" or 3/8", valve angle: intake (stock) / exhuast. tipped 1.5° - 21.5°, exhaust port location: stock.
Note: Recommend 14mm x 3/4" reach spark plugs with flat gasket seat (Champion RC12YC). Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using.
Chrysler Applications- 1962 - 1971 Chrysler 300
- 1967 - 1975 Chrysler Imperial
- 1965 - 1976 Chrysler New Yorker
- 1965 - 1976 Chrysler Newport
- 1965 - 1976 Chrysler Town & Country
- 1963 - 1964 Dodge 330
- 1963 - 1964 Dodge 440
- 1963 - 1963 Dodge 880
- 1970 - 1974 Dodge Challenger
- 1966 - 1976 Dodge Charger
- 1965 - 1976 Dodge Coronet
- 1962 - 1976 Dodge Dart
- 1961 - 1962 Dodge Lancer
- 1965 - 1976 Dodge Monaco
- 1962 - 1973 Dodge Polara
- 1964 - 1974 Plymouth Barracuda
- 1962 - 1970 Plymouth Belvedere
- 1970 - 1974 Plymouth Cuda
- 1970 - 1976 Plymouth Duster
- 1962 - 1974 Plymouth Fury
- 1967 - 1971 Plymouth GTX
- 1968 - 1975 Plymouth Road Runner
- 1965 - 1974 Plymouth Satellite
- 1962 - 1964 Plymouth Savoy
- 1972 - 1976 Plymouth Scamp
- 1970 - 1970 Plymouth Superbird
- 1961 - 1976 Plymouth Valiant
- 1967 - 1967 Plymouth VIP
This product fits the following vehicle applications. Click to view individual years.
Product Specifications
Shipping Dimensions- Weight: 30 Lbs
- Ship Type: Overweight |
- Non-CARB Compliant: This product is not legal for street use on an emissions-controlled vehicle. It may be used on dedicated competition or pre-polution-controlled vehicles only.
