1955-57 Chevrolet 265-400 Uncoated (Raw Steel) Oval Port Shorty Patriot Headers

These popular 1955-57 Chevrolet passenger car headers offer superior performance and are designed to clear most air conditioning, power brake, and power steering systems. Extra ground clearance makes "slammed" vehicles driveable and above frame rail ex haust system installation easy.

• Increased horsepower and torque
• Improved throttle response
• Improved fuel economy
• Improved engine compartment aesthetics

• 1-5/8" tube
• 2-1/2" collector
• 5/16" flange thickness
• Oval port

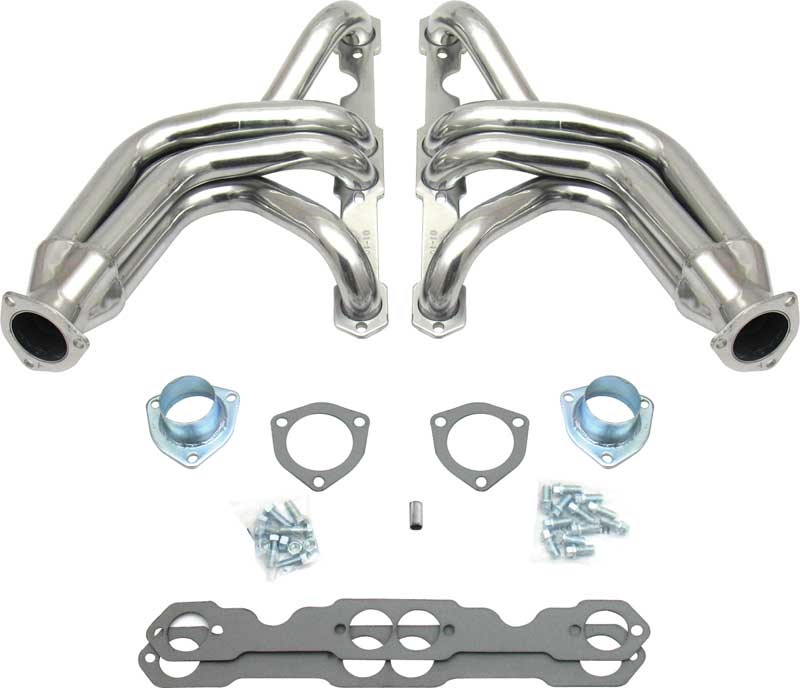

Included with each set are installation hardware, collector reducers, gaskets and instructions.

These headers are raw st eel and are uncoated for those who wish to apply their own type or color of coating. Although an uncoated hedder can be used, we recommend the use of a thermal coating or a high temperature paint (sold separately) to protect them from the elements and pr olong their life. For coated headers see Part # TF700408.

Important: Be sure to read the important Applica tion and Emission Notes listed below pertaining to each header system for correct application.

Note: Check your local or state laws before installing. Ship ped oversize.

• With or Without Air Conditioning
• With or Without Power Steering
• With or Without Power Brakes
• Automatic Transmission w ith Column or Floor Shift
• Manual Transmission with Floor Shift

• Will not fit manual transmission with column shift
• Fits with stock or 605 steering boxes, aftermarket side engine mounts and rear trans crossmember
• Shorty design for maximum ground clearance
• Will not fit if engine is more than 3/4" forward for HEI firewall clearance
• Fits D-Port cylinder heads including Z Z4 crate engines
• Will not work with 168 tooth flywheels or kickout aftermarket starters
• Will fit most angle plug heads including factory Chevrolet "Bow Tie" heads
• Header is designed to fit cars using original V8 pitman arm no t 6 cylinder pitman arm. Aftermarket pitman arms must be same as OE for proper header fit

• Legal only for off-highway use (except in California or states that have adop ted California emission standards), racing use or for use on pre-emission-controlled motor vehicles/motor vehicle engines (pre-1974 domestic vehicles certified to California standards, pre-1974 domestic vehicles certified to federal standards and all pre- 1974 foreign vehicles), per the manufacturer's application guide.
